| Switch Capacity |
24Gbps Full duplex |
| Uplink Ports |
2 x 1000Mbps RJ45 ports + 2 x 1000Mbps SFP ports |
| PoE Power Budget |
96W |
| Surge Protection |
Common mode/RJ45 port: 4KV Differential mode/RJ45 port: 2KV Common mode/Power board: 2K Differential mode/Power board: 2KV |
| ESD |
Air discharge: 8KV Contact discharge: 6KV |
| Ethernet Port Light |
Green light off: Link is disconnected Green light on: Link is connected Green light flash: Data Transmitting |
| Network Port |
12 |
| Transmission Distance |
0-100m/1000Mbps or Port 7-8 Max. 250m/10Mbps via Cat.5e or more under Extend mode |
| PoE Ports |
8, 1000Mbps; RJ45 ports; Max. 30W Output of Single PoE Port |
| PoE Power Supply |
1/2(+),3/6(-) |
| PoE Standard |
IEEE802.3af, IEEE802.3at |
| Packet Forwarding Rate |
1.488Mpps/port |
| MAC Address List |
2K |
| Power Source |
Input: 100-240V AC, 50/60Hz, Bult-in Power Supply |
| Power Consumption |
<5W |
| Operating Temperature |
-10°C~ 50°C |
| Humidity |
10%-95% , non-condensing |
| Storage Temperature |
-40°C~70°C |
| Dimension |
220 x 161 x 44 mm |

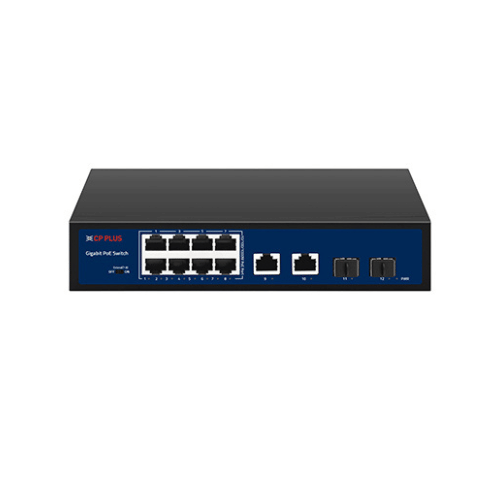

![CP PLUS 10 Ports Switch with 8 Gigabit PoE Ports & 2 Gigabit Uplink Ports, 2 SFP Ports [CP-DNW-GPU8G2F2-96]](https://cctv.differentaa.com/wp-content/uploads/2024/08/CP-VTA-M1143-Face-Fingerprint-Based-Time-Attendance-Terminal-14-1.png)
