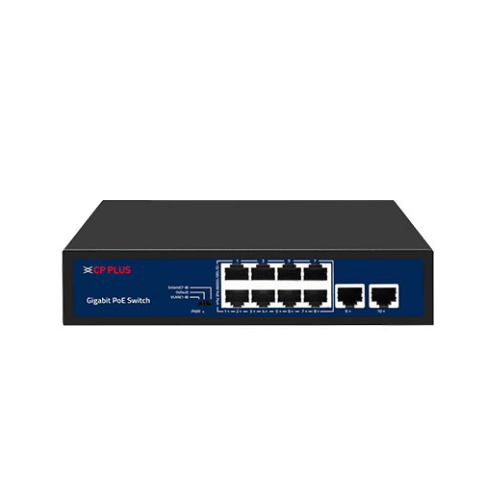

CP PLUS 10 Ports Switch with 8 Gigabit PoE Ports & 2 Gigabit Uplink Ports [CP-DNW-GPU8G2-96-v4]

Uplink Ports	2, 1000Mbps; Transmission Distance: 0-100m
Network Protocol	IEEE802.3i/802.3u/802.3x/802.3af/802.3ab
Switch Capacity	20Gbps Full duplex
Packet Forwarding Rate	1.488Mpps/port
PWR (Power Indicator)	Light on: Powering, Light off: No Power
PoE Ports	8, 1000Mbps; RJ45 ports; Max. 30W Output of Single PoE Port
Network Port	10
MAC Address Table	2K
PoE Standard	IEEE802.3af, IEEE802.3at
PoE Power Supply	1/2(+), 3/6(-)
Transmission Distance	0-100m/1000Mbps or Port 7-8 Max. 250m/10Mbps via Cat.5e or more under Extend mode
PoE Power Budget	96W
PoE Feature	All ports support MDI/MDIX
ESD	Air discharge: 8KV ; Contact discharge: 6KV
Surge Protection	Common mode/RJ45 port: 4KV Differential mode/RJ45 port: 2KV Common mode/Power board: 2KV Differential mode/Power board: 2KV
VLANs	Support
RJ-45 ACT Indicator	Green light off: Link is disconnected Green light on: Link is connected Green light flash: Data Transmitting
Watchdog	Support
Forwarding Mode	Store-and-forward
Power Source	Built-in Power Supply, Input: 100-240V AC, 50/60Hz
Power Consumption	<5W
Operating Temperature	-10°C ~ 50°C
Storage Temperature	-40°C ~ 70°C
Working Humidity	10%-95% , non-condensing
Dimensions	200mm x 118mm x 44mm
Color	Black
Weight	0.8Kg (not include input cable & packaging)
