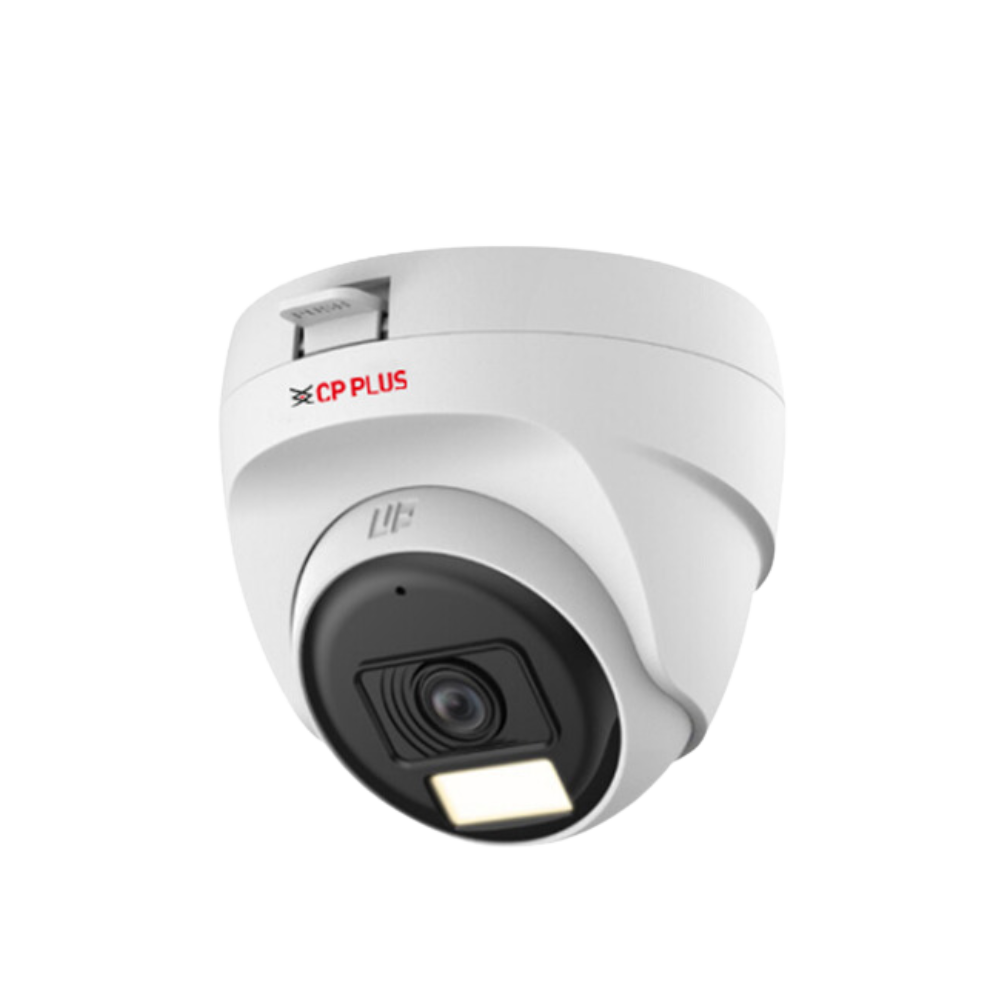

CP Plus 2.4MP Dual Light Dome Camera – 30Mtr [ CP-URC-DC24PL3C-L-0360 ]

2.4MP PS CMOS Image Sensor
DWDR, Day/Night (ICR), 2D-NR,BLC, HLC
3.6mm fixed lens (2.8 mm, 6mm optional)
IR Range of 30 Mtrs., Warm Light Range of 20 Mtr.
Control over coaxial cable
Support Built-in Mic

Support Motion Detection

Image Sensor	2.4MP PS CMOS Image Sensor
Minimum Illumination	0.02 lux@F2.0 (Color, 30 IRE); 0.002 lux@F2.0 (B/W, 30 IRE); 0 lux (Illuminator on)
Shutter Speed	PAL: 1/25~1/10000s NTSC: 1/30~1/10000s
Gain Control (AGC)	Auto/Manual
White Balance	Auto, Area white balance
DORI Distance	2.8 mm: Detect: 44.7Mtr. , Observe: 17.9Mtr., Recognize: 8.9Mtr., Identify: 4.5Mtr. 3.6 mm: Detect: 50.0Mtr., Observe: 22.0Mtr., Recognize: 11.0 Mtr., Identify: 5.5Mtr.
Close Focus Distance	3.6mm– 0.8Mtr. 2.8mm– 0.5Mtr.
IR Distance	IR Range of 30 Mtr.
Warm Light	Warm Light Rane of 20 Mtr.
IR Control	Auto/Manual
Dual LED Numbers	2 (Warm light), 2 (IR light)
Iris Control	Fixed
Lens Mount	M12
Max. Aperture	F2.0
Lens Type	Fixed-focal
Lens	3.6mm (2.8mm optional)
S/N Ratio	>65 dB
Back Light Compensation	BLC/HLC/DWDR
Angle Adjustment	Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360°
Angle of View	3.6 mm: H: 80°, V: 43°, D: 94° 2.8 mm: H: 100°, V: 54°, D: 117°
Video Streaming	CVI: PAL: 2.4MP@25 fps NTSC: 2.4MP@30 fps, AHD: PAL: 2.4MP@25 fps NTSC: 2.4MP@30 fps TVI: PAL: 2.4MP@25 fps NTSC: 2.4MP@30 fps, CVBS: PAL: 960H NTSC: 960H
Resolution	2.4MP(1920×1088); 960H (960 × 576/960 × 480)
Video Output	Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Day/Night	Auto(ICR)/Color/B/W
Noise Reduction	2D NR
IR Mode	Smart IR&WL, Mode, IR Mode
Mirror Function	Support
Privacy Masking	Off/On (8 areas, rectangle)
OSD Menu	Multi-language
Audio	Built-in Mic
Operating Temperature	-40°C ~ +60°C (-40°F ~ +140°F)
Operating Humidity	Less than 95% RH
Storage Temperature	-40°C ~ +60°C (-40°F ~ +140°F)
Storage Humidity	Less than 95% RH
Power Source	12V DC ±25%
Power Consumption	Max 2 W (12 VDC, LED on)
Casing	Plastic
Dimension	85.0 mm × 77.1 mm
Weight	0.11 kg
