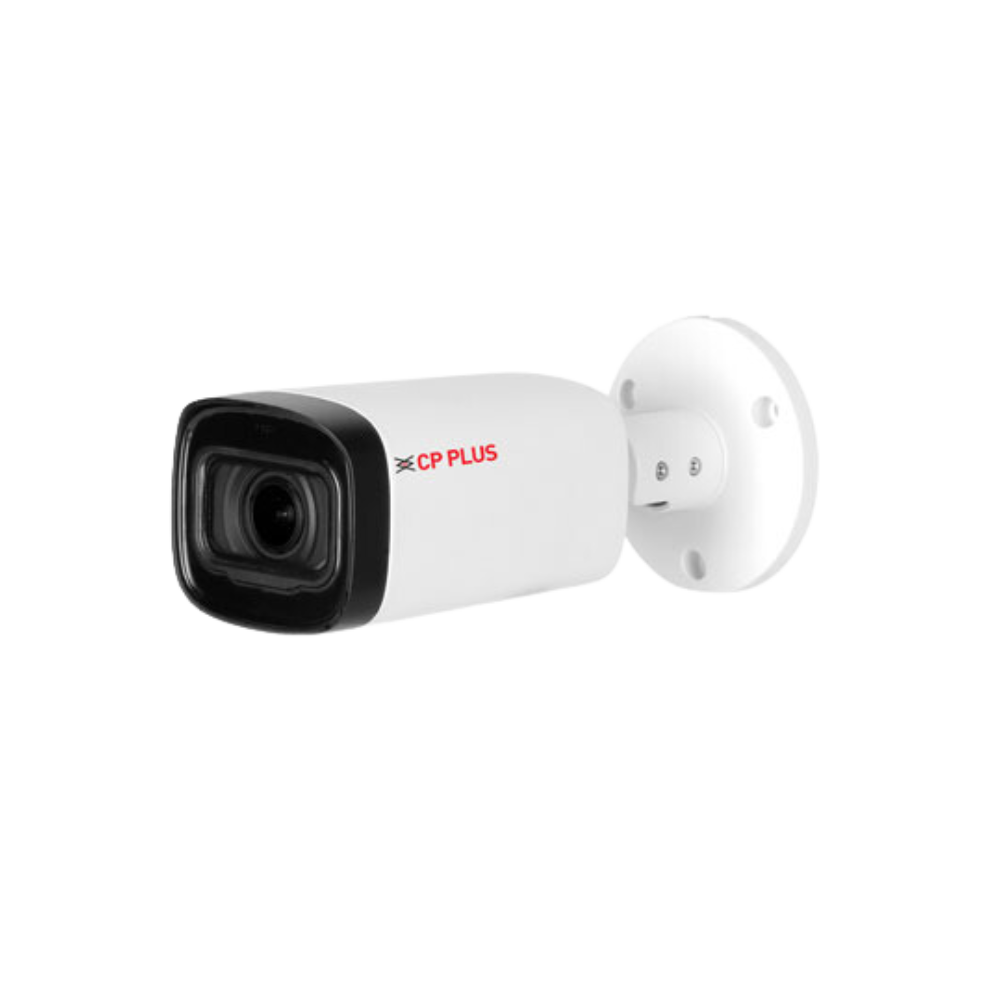

CP Plus 2.4MP IR Bullet Camera – 60Mtr [ CP-USC-TD24FL6-V3 ]

HD and SD output Switchable

Image Sensor	1/2.7” 2.4MP CMOS Image Sensor (0.9407cm)
Minimum Illumination	0.04Lux/F1.8, 30IRE, 0Lux IR on
Shutter Speed	PAL: 1/25s–1/100000s ; NTSC: 1/30s–1/100000s
White Balance	Auto / Manual
Gain Control (AGC)	Auto / Manual
ICR	Auto (ICR)/Manual
Lens	2.7mm~12mm Varifocal
Max Aperture	F1.8
Lens Type	Vari-Focal
Close Focus Distance	500mm ; 19.7”
Mount Type	Board-in
S/N Ratio	More than 65dB
DORI Distance	25m (Detect) 63m(Observe) 125m(Recognize) 250m(Identify)
Back Light Compensation	BLC / HLC / DWDR
Video Streaming	25/30fps@2.4MP, 25/30/50/60fps@720P
Video Output	1-channel BNC high definition video output / CVBS video output (Can switch)
Angle of View	H: 106°~33° ; V: 56°~19°
IR	IR Range of 60 Mtr., Smart IR
OSD	Multi-language
Casing	Aluminium
Operating Temperature	-30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
Power Source	12V DC ±30%
Power Consumption	Max 4.6W (12V DC, IR on)
Weatherproof Standard	IP67
Dimension	209.8mm×90.4mm×90.4mm
Weight	0.59kg
