| Switch Capacity |
40Gbps Full duplex |
| Uplink Ports |
2 Uplink Port, 1000Mbps RJ45 ports & 2 Gigabit SFP ports |
| PoE Power Budget |
300W |
| Surge Protection |
Common mode/RJ45 port:4KV, Differential mode/RJ45 port:2KV, Common mode/Power board:4KV, Differential mode/Power board: 2KV |
| ESD |
Air discharge: 6KV Contact discharge: 6KV |
| Ethernet Port Light |
Green light on: Link is disconnected Green light on: Link is connected Green light flash: Data Transmitting |
| Transmission Distance |
0-100m/1000Mbps or Port 17-24 Max. 250m/10Mbps via Cat.5e or more under Extend mode |
| PoE Ports |
24 Port with 10/100/1000Mbps; RJ45 ports; Max. 30W Output of Single PoE Port |
| PoE Power Supply |
1/2(+),3/6(-) |
| PoE Standard |
IEEE802.3af, IEEE802.3at |
| Packet Forwarding Rate |
41.66Mpps |
| MAC Address List |
8K |
| Power Source |
Bult-in Power Supply, Input: 110-240V AC, 50/60Hz |
| Power Consumption |
<5W |
| Operating Temperature |
-10°C~ 50°C |
| Humidity |
10%-95% , non-condensing |
| Storage Temperature |
-40°C~70°C |
| Dimension |
320mm x207mm x 44mm |

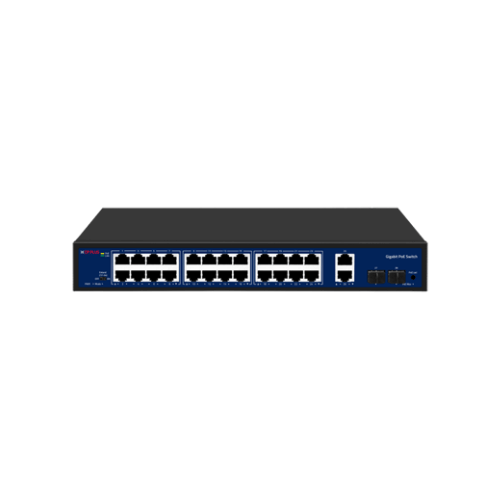

![CP PLUS 24 Port PoE Switch with 2 Uplink Port +2 SFP Port [CP-DNW-GPU24G2F2-30]](https://cctv.differentaa.com/wp-content/uploads/2024/08/CP-VTA-M1143-Face-Fingerprint-Based-Time-Attendance-Terminal-16-1.png)
