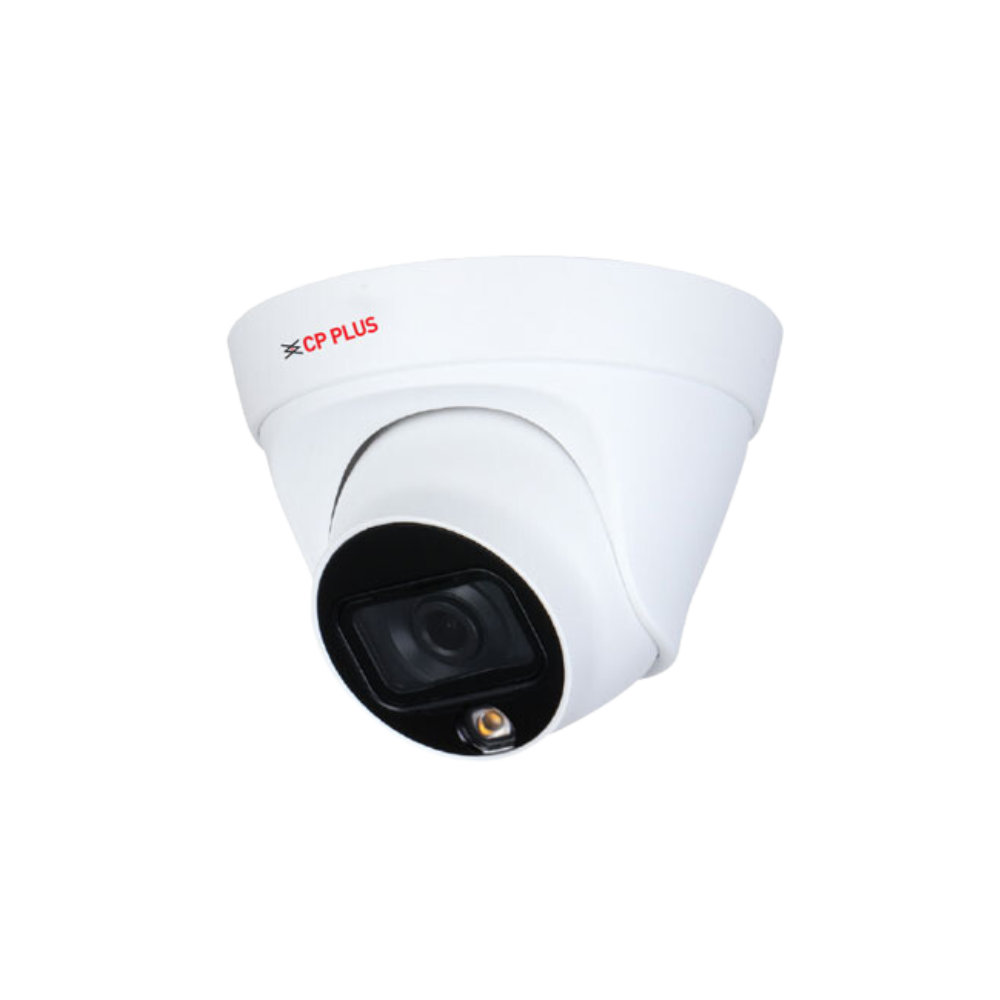

CP Plus 2MP Full-color Guard+ Network Dome Camera [ CP-UNC-DA21L2C-GP-V3 ]

1/2.8” 2Megapixel PS CMOS Image Sensor (0.9071 cm)
Max. 2MP(1920 x 1080)@25/30fps
Instastream; SMART H.264+ and H.264 dual-stream encoding
DWDR, Day/Night (ICR), 3D-NR, ROI, AWB, AGC, BLC, HLC
3.6mm fixed lens (2.8mm optional)
Built in Mic, Built-in LEDs, Support IP67, PoE
Illumination Range 20 Mtrs
Mobile Software: iCMOB, gCMOB

CMS Software: KVMS Pro

Image Sensor	1/2.8″ 2MP PS CMOS Image Sensor(0.9071Cm)
Minimum Illumination	0.005Lux@F1.6
Effective Pixels	1920 (H) x 1080 (V)
Lens	3.6mm (2.8mm Optional)
Frame Rate	Main stream: 1920 × 1080@1–25/30 fps; Sub stream: 704 × 576@1–25 fps; 704 × 480@1–30 fps; *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity
Gain Control (AGC)	Auto/Manual
ICR	Color/B/W
Lens Type	Fixed-focal
Privacy Mask	4 Area
Max. Aperture	F1.6
S/N Ratio	>56dB
DORI Distance	3.6mm: 58.9 m (Detect) 23.6 m (Observe) 11.8 m (Recognize) 5.9 m (Identify) 2.8mm: 43.9m (Detect) 17.5m (Observe) 8.8m (Recognize) 4.4m (Identify)
Shutter Speed	Auto/Manual, 1/3~1/100000s
Mount Type	M12
Angle of View	H: 107°; V: 56°; D: 127°; H: 88°; V: 44°; D: 105°
ROI	Supported (4 areas)
White Balance	Auto/natural/street lamp/outdoor/manual/regional custom
Motion Detection	Off / On (4 area, Rectangle)
Audio	Built in Mic
Back Light Compensation	BLC / HLC / DWDR
Audio Compression	G.711A; G.711Mu; G.726
Video Compression	Smart H.264+; H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
SDK and API	Supported
Encode Strategy	Instastream
Protocol	IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP,ONVIF (Profile S); CGI; InstaOn clou
Cyber Security	Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade
Alarm Event	Network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; security exception
Bit Rate	H.264: 32 Kbps–6144 Kbps H.265: 12 Kbps–6400 Kbps
Illumination Distance	Illumination Distance 15 Mtr.
Operating Temperature	-40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH
Storage Temperature	-40 °C to +60 °C (–40 °F to +140 °F)
Smart Phone	iPhone, iPad, Android Phone
Power Source	12V DC/PoE (802.3af)
Power Consumption	Basic power consumption: 1.2 W (12 VDC); 2 W (PoE) Max. power consumption (H.265+Warm light intensity): 4.2 W (12 VDC); 5.4 W (PoE)
Ethernet	RJ-45 (10/100Base-T)
Casing	Inner core: Metal + plastic Cover: Plastic Decoration ring: Plastic Pedestal: Plastic
Dimension	85.5 mm × Φ109 mm
Weatherproof Standard	IP67
Weight	0.24kg
