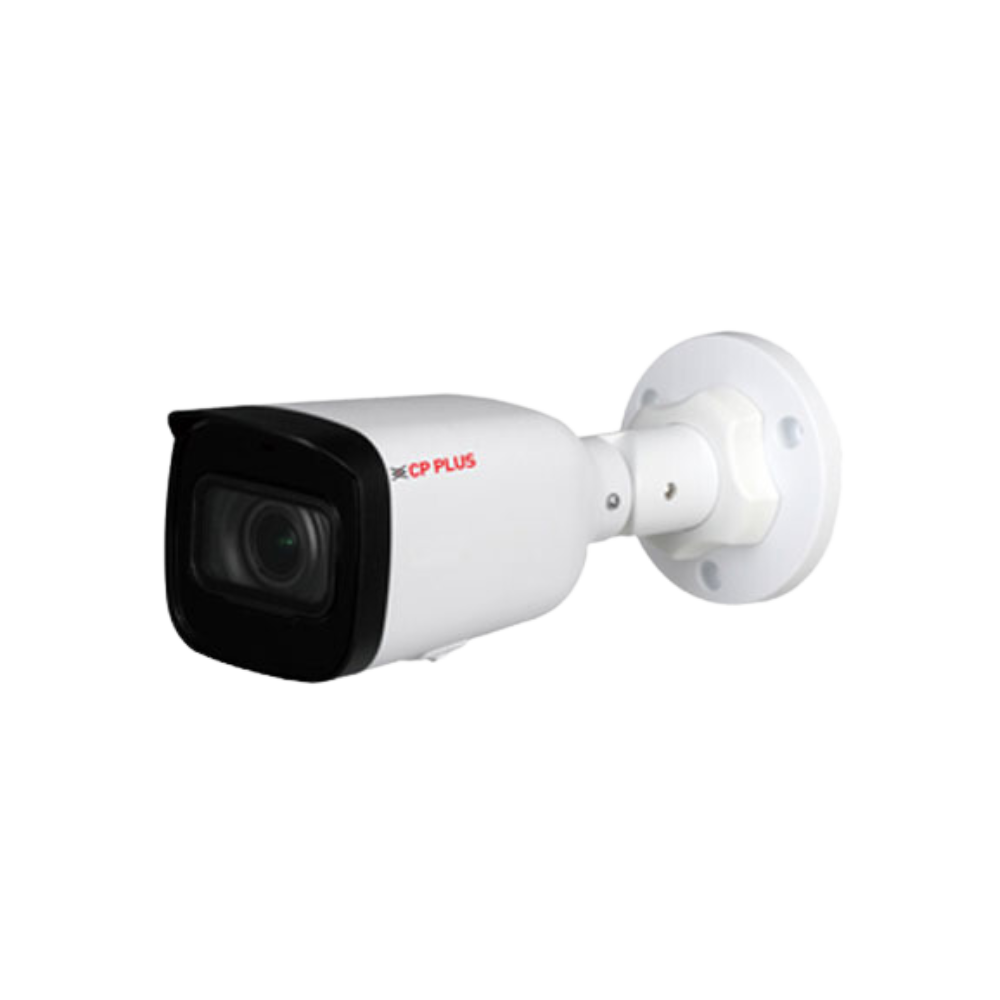

CP Plus 2MP Full HD IR Bullet Camera – 50Mtr [ CP-UNC-TA21ZPL5-M ]

1/2.8” 2MP PS CMOS Image Sensor (0.9071 cm)
Max 25/30fps@2MP
Instastream and H.264+ dual-stream encoding
DWDR, Day/Night(ICR), 3D-DNR, ROI, AWB, AGC, BLC, HLC
2.8mm~12mm Motorized Lens
IR Range of 50 Mtrs, IP67, Micro SD Card, PoE
Mobile Software: iCMOB, gCMOB

CMS Software: KVMS Pro

Image Sensor	1/2.8” 2MP PS CMOS Image Sensor (0.9071 cm)
Minimum Illumination	0.005 Lux@F1.5
Effective Pixels	1920(H)x1080(V)
BodyType	Dome
Shutter Speed	Auto/Manual, 1/3~1/100000s
White Balance	Auto/Natural/Street Lamp/Outdoor/Manual/Regional custom
Lens	2.8mm~12mm Motorized Lens
Gain Control (AGC)	Auto/Manual
Video Compression	Instastream/H.265/H.264+/H.264H/H.264B/ MJPEG (only supported by Sub stream)
Angle of View	Pan: 101°–33.5° Tilt: 52.5°–19° Diagonal: 125°–38.5°
S/N Ratio	>56dB
Back Light Comp.	BLC/ HLC/ DWDR
Frame Rate	Main Stream: 1920 × 1080 (1 fps–25/30 fps) Sub stream: 704 × 576 (1 fps–25 fps) 704 × 480 (1 fps–30 fps)
Resolution	1080P (1920 × 1080); 1.3MP (1280 × 960); 720P (1280 × 720); D1 (704 × 576/704 × 480); VGA (640× 480); CIF (352 × 288/352 × 240)
Motion Detection	OFF/ON (4 areas, rectangular)
Privacy Mask	4 Area
ICR	Auto(ICR)/Color/B/W
ROI	Yes (4 areas)
Bit Rate	H.264: 32 Kbps–6144 Kbps H.265: 12 Kbps–6400 Kbps
Protocol	IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; NTP; Multicast; ONVIF (Profile S/Profile T); CGI; InstaOn; Genetec; milestone
Ethernet	RJ-45 (10/100Base-T)
User Account	20 Users
Smart Phone	iPhone, iPad, Android Phone
IR Range	IR Range of 50 Mtr., Smart IR
Micro SD	FTP; Micro SD card (support max. 256 GB)
Operating Temperature	-30°C to +60°C (-22°F to +140°F)/less than ≤ 95% RH
Power Source	DC12V, PoE (802.3af)
Power Consumption	1.4W (12V DC); 2.2W (PoE)
Weatherproof Standard	IP67
Casing	Metal + Plastic
Dimension	243.5 mm × Φ90.7 mm
Weight	0.43Kg
