| Input voltage |
150VAC – 240VAC |
| Output voltage |
12V DC |
| Current Range |
0-1A Each Channel |
| Rated Power |
48W |
| Ripple & Noise (max.) |
<200mV |
| Voltage Adj. Range |
12V DC – 15V DC |
| Line Regulation |
<3% at 150VAC-240VAC |
| Voltage Tolerance |
10% |
| Setup Rise time |
30mS max @ rated load, output voltage from 10% to 90% |
| Hold Up Time (Typ.) |
30ms max @ full load & 230Vac input turn of |
| Load Regulation |
<10% at 150Vac-240Vac |
| Temperature coefficient |
Max 75 degree |
| Frequency Range |
50Hz-60Hz. Normal |
| Efficiency (Typ.) |
70% |
| AC Current (Typ.) |
1.2A Max @ max 100-240Vac input & full load |
| Inrush Current (Typ.) |
50A max @ 240 Vac input & full load |
| Leakage Current |
0.008 A Max |
| Over Load |
Supported |
| Isolation Resistance |
50MΩ min at primary to secondary add 500Vdc test voltage |
| Working Humidity |
5% to 95% |
| Vibration |
n/a |
| Withstand Voltage |
Input (100 – 240)Vac/ Output (12 -15)Vdc |
| Dimension |
154.7mm x 97.38mm x 32.90mm |
| Store temperature |
-40°C to +70°C |
| Working temperature |
-10°C to +45°C |
| Body Type |
Plastics ABS |
| Weight |
219.1g |

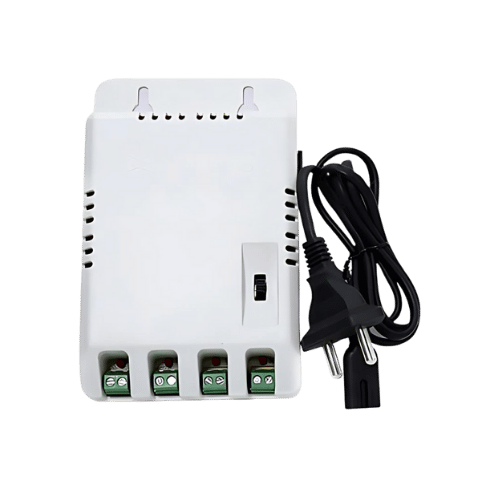

![CP Plus 4 Ch. Eco Power Supply [CP-LPS-PD04-12D]](https://cctv.differentaa.com/wp-content/uploads/2024/08/CP-VTA-M1143-Face-Fingerprint-Based-Time-Attendance-Terminal-21.png)
