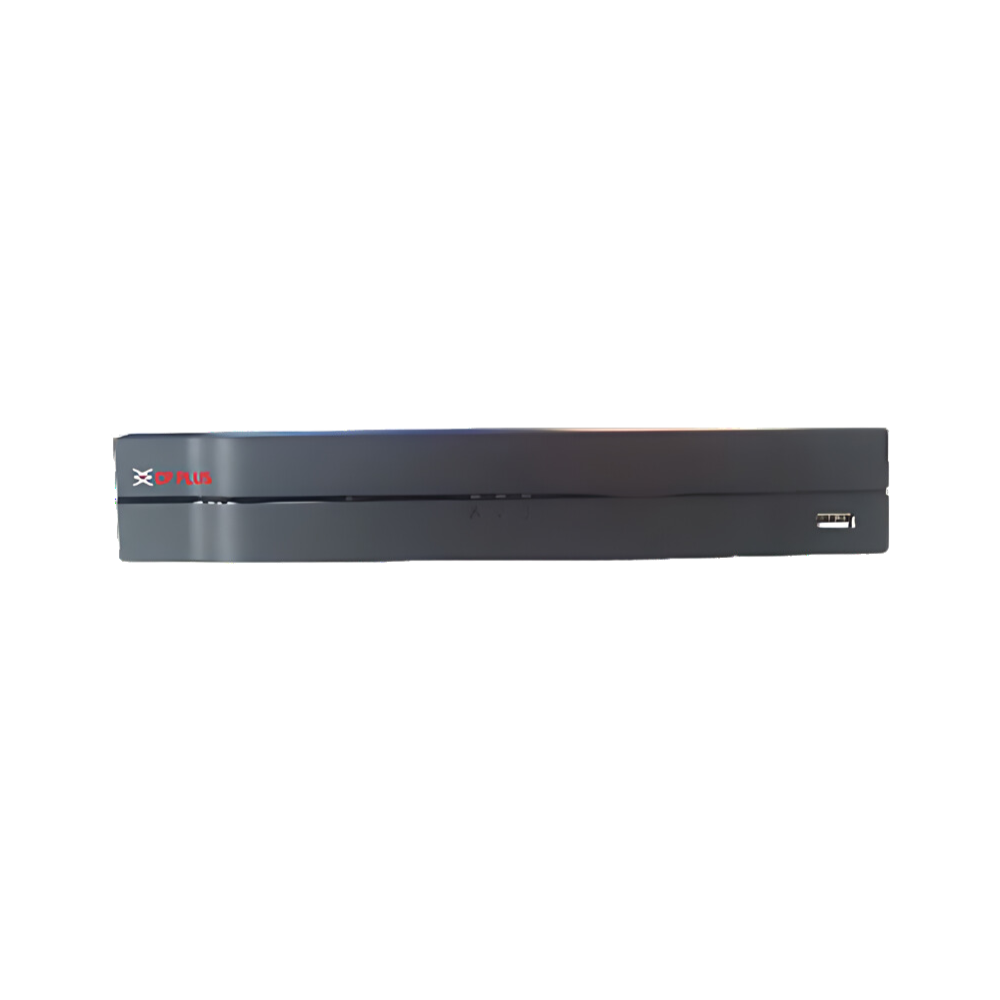

CP Plus 4K-N/5MP Digital Video Recorder [ CP-UVR-0401L1-4KI3 4Ch ]

Supports HDCVI/AHD/TVI/CVBS/IP video inputs
Support each channel upto 8MP IP Camera; Max 64 Mbps incoming bandwidth.
Up to 4 channels video stream (analog channel) Perimeter Protection
AI Instastream, Instastream, H.265 dual-stream Video Compression
Up to 4 channels video stream (analog channel) SMD Plus
Support 1 SATA HDDs up to 16TB, 2 USB Ports
Up to 1 channel video stream (analog channel) human face recognition
POS functionalities
Mobile Software: iCMOB, gCMOB

CMS Software: KVMS Pro

Processor	Industrial-grade processor
Operating System	Embedded LINUX
IP Camera Input	4+4 Ch.(analog channels are converted into IP channels) each channel up to 8MP. Incoming bandwidth: 64 Mbps, recording bandwidth: 64 Mbps and outgoing bandwidth: 64 Mbps *After IP channels are added beyond the existing channels, the AI Function (IVS, SMD, FACE) will be disabled.
Two-way Talk	Yes (share the same audio input with the first channel)
User Interface	GUI
Video Output	1 HDMI, 1 VGA
Video Resolution	VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
Video Recording	Main stream: All channel 4K (1 fps–10 fps); 6MP (1 fps– 10 fps); 5MP (1 fps–12 fps); 4K-N, 4MP/3MP (1 fps–15 fps); 4M-N/1080p/720p/960H/D1/CIF (1 fps–25/30 fps); Sub stream: 960H (1 fps–15 fps); D1/CIF (1 fps–25/30 fps)
Resolution	4K, 6MP, 5MP, 4K-N, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF
Video Compression	AI Instastream, Instastream, H.265+; H.264+; H.264
Video Display Split	1/4
Video Channel	4 channels
Audio Compression	G.711A, G.711U, PCM
Audio Output	1 channel RCA, 4-channel BNC (Coaxial Audio)
Audio Input	1 channel, RCA
Motion Detection	MD Zones: 396 (22 × 18)
Video Loss	Supports
Smart Phone	iPhone, iPad, Android Phone
Face	Gender; age group; glasses; expressions; face mask; beard
Hard Disk	1 SATA port, up to 6TB.(The maximum HDD capacity varies with environment temperature.)
Database Management	Up to 10 face databases and 10,000 images.
Bit Rate	32 kbps–6144 kbps
Recording Mode	General, motion detection; intelligent; alarm; POS
Backup Mode	USB Device/Network
Playback	Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)
Ethernet	1 RJ-45 port (10/100Mbps)
Interface Ports	1 HDMI, 1 VGA, 2 USB Ports(2.0), 1 RS485
Protocols	HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS,ONVIF 21.06, CGI Conformant, P2P
Power Supply	DC 12V/1.5A
Power Consumption	<7W (without HDD)
Working Temp	-10°C to +55°C (+14°F to +131°F), 0–90% RH
Dimension	325.0 mm × 257.2 mm × 55.0 mm (W × D × H)
Weight	1.16 kg
