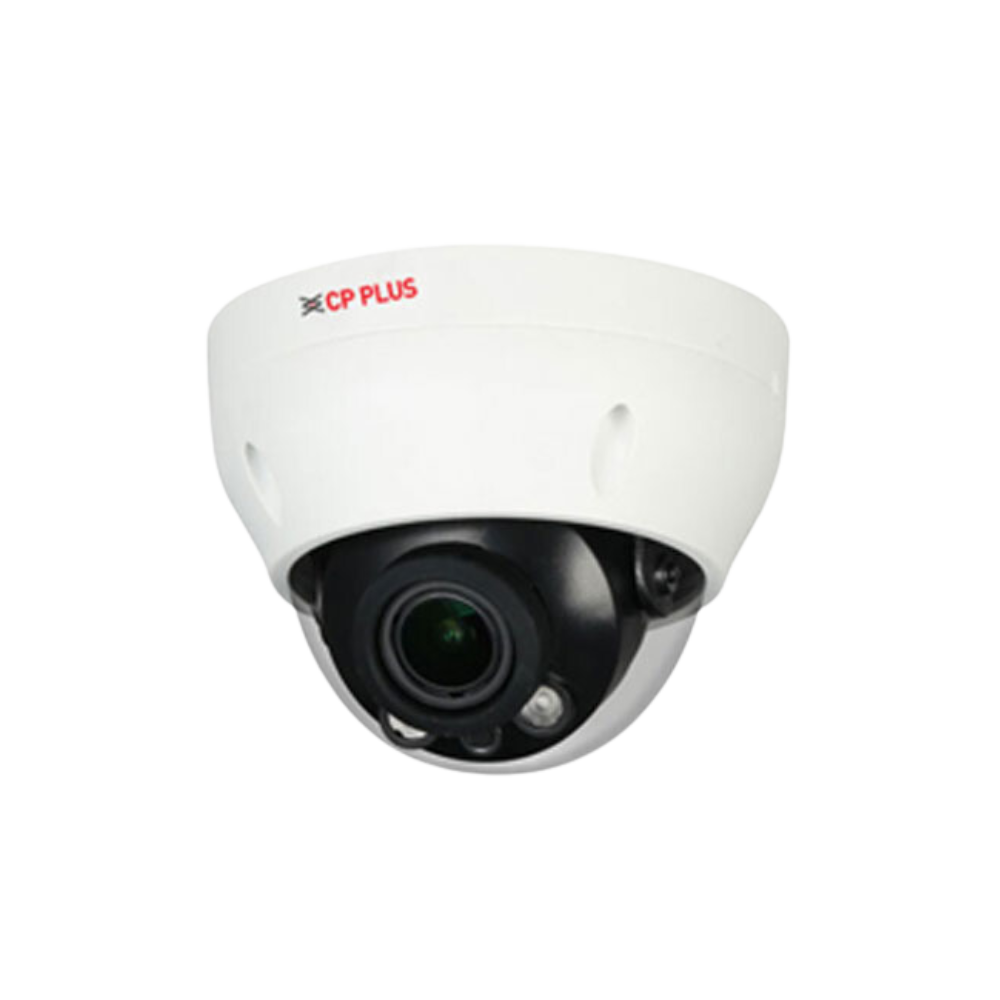

CP Plus 4MP WDR Network IR Dome Camera – 40Mtr [ CP-UNC-DA41ZPL4-MD ]

1/3” 4MP PS CMOS Image Sensor (0.84667cm)
25/30fps@4MP(2560×1440)
Instastream, H.265 and H.264+ dual-stream encoding
WDR(120dB), Day/Night(ICR), 3D-DNR, ROI, AWB, AGC, BLC, HLC
2.8~12mm Motorized lens
IR Range of 40 Mtrs, IP67, Micro SD Card, PoE
Mobile Software: iCMOB, gCMOB

CMS Software: KVMS Pro

Image Sensor	1/3” 4MP PS CMOS Image Sensor (0.84667cm)
Minimum Illumination	0.03Lux@F1.7
Effective Pixels	2688(H)x1520(V)
BodyType	Dome
Shutter Speed	Auto/Manual, 1/3~1/100000s
White Balance	Auto/Natural/Street Lamp/Outdoor/Manual/Regional custom
Lens	2.8mm~12mm Motorized Lens
Gain Control (AGC)	Auto/Manual
Video Compression	Instastream/H.265/H.264+/H.264/H.264B/MJPEG
Angle of View	Horizontal: 98°~31°, Vertical: 55°~18° Diagonal: 116°~36°
S/N Ratio	More than 50dB
Back Light Comp.	BLC/ HLC/ WDR(120dB)
Frame Rate	Main Stream: 2688 × 1520 (1 fps–20 fps) 2560 × 1440 (1 fps–25/30 fps) Sub Stream: 704 × 576 (1 fps–20/25 fps) 704 × 480 (1 fps–20/30 fps)
Resolution	2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480)
Motion Detection	Off / On (4 Zone, Rectangle)
Privacy Mask	4 Area
ICR	Auto(ICR)/Color/B/W
ROI	Yes (4 areas)
Bit Rate	H.264: 32 Kbps–6144 Kbps H.265: 12 Kbps–6144 Kbps
Protocol	HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; QoS; UPnP; NTP; RTMP; Multicast; HTTPS; SFTP; 802.1x; ICMP; IGMP;ONVIF (Profile S/Profile G); CGI; InstaOn cloud
Ethernet	RJ-45 (10/100Base-T)
User Account	20 Users
Smart Phone	iPhone, iPad, Android Phone
IR Range	IR Range of 40 Mtr., Smart IR
Micro SD	FTP; NAS; Micro SD card (support max. 256 GB)
Operating Temperature	-30°C to +55°C (-22°F to +131°F) /less than≤95%
Power Source	DC12V, PoE (802.3af)
Power Consumption	< 6.4W
Weatherproof Standard	IP67
Dimension	98.1 mm × Φ122 mm
Weight	0.39Kg
