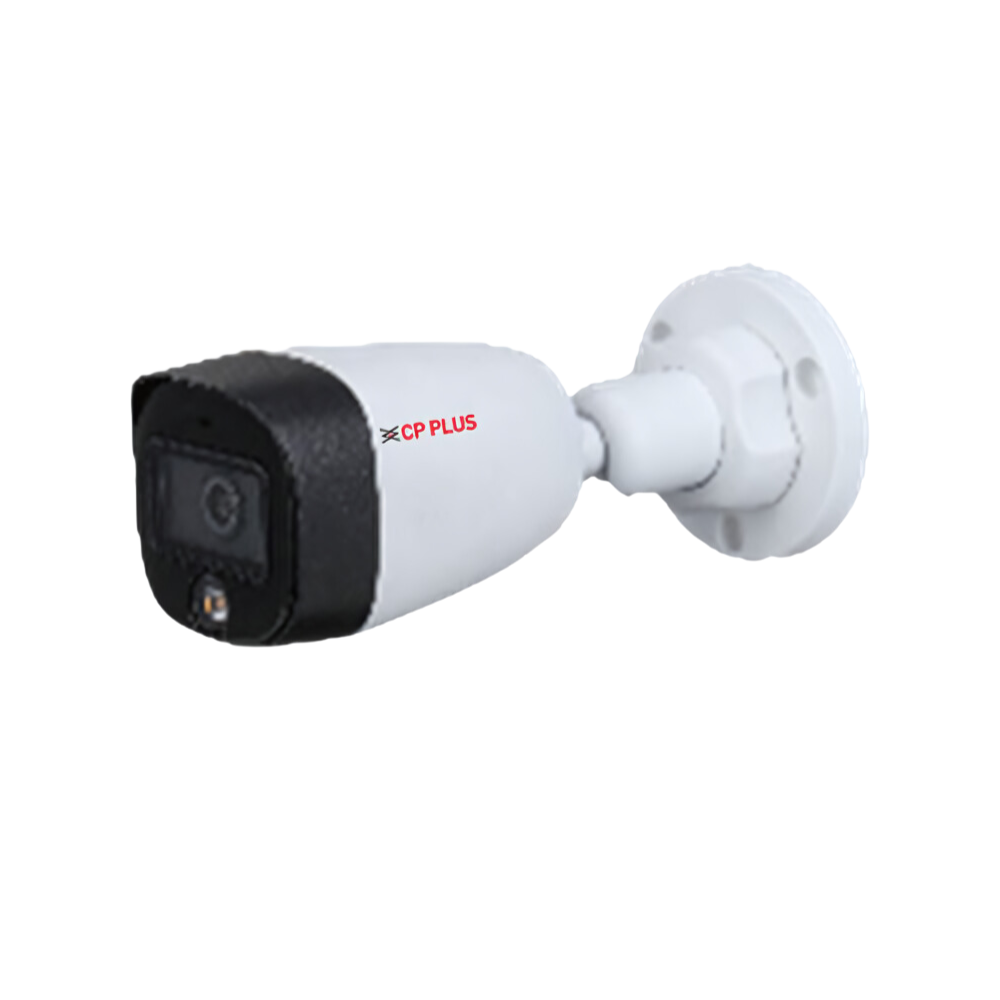

CP Plus 5MP Full-Color Guard+ Bullet Camera – 20Mtr [ CP-GPC-TA50PL2-SE-0360 ]

CVI/CVBS/AHD/TVI switchable

Image Sensor	1/2.7″ 5MP PS CMOS (0.9407cm)
Minimum Illumination	0.005Lux/F1.6, 0Lux White Light on
BodyType	Bullet
Shutter Speed	PAL: 1/25~1/100000s NTSC: 1/30~1/100000s
Max Aperture	F1.6
White Balance	Auto/Manual
Lens Type	Fixed
Lens	3.6mm
Gain Control (AGC)	Auto/Manual
DORI Distance	3.6mm: 80m(Detect), 32m(Observe), 16m(Recognize), 8m(Identify)
Angle of View	3.6 mm: 109° × 92° × 48° (diagonal × horizontal × vertical)
S/N Ratio	>65dB
Back Light Comp.	BLC/ HLC/ DWDR
Video Streaming	CVI: PAL: 5M@25 fps; 4M@25 fps; 1080P@25 fps; NTSC: 5M@25 fps; 4M@30 fps; 1080P@30 fps; AHD: PAL: 4M@25 fps; NTSC: 4M@30 fps TVI: PAL: 4M@25 fps; NTSC: 4M@30fps CVBS: PAL: 960H; NTSC: 960H
Privacy Mask	Off/On (8 area, rectangle)
Video Output	Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Illumination Distance	Illumination Range of 20 Mtr.
Operating Temperature	-40°C to +60°C (–40°F to 140°F); <95% (non condensation)
Power Source	12V DC ±30%
Power Consumption	Max 3.1W (12V DC, White Light on)
Weatherproof Standard	IP67
Dimension	163.4 mm × 69.7 mm × 70.0 mm
Casing	Plastic
