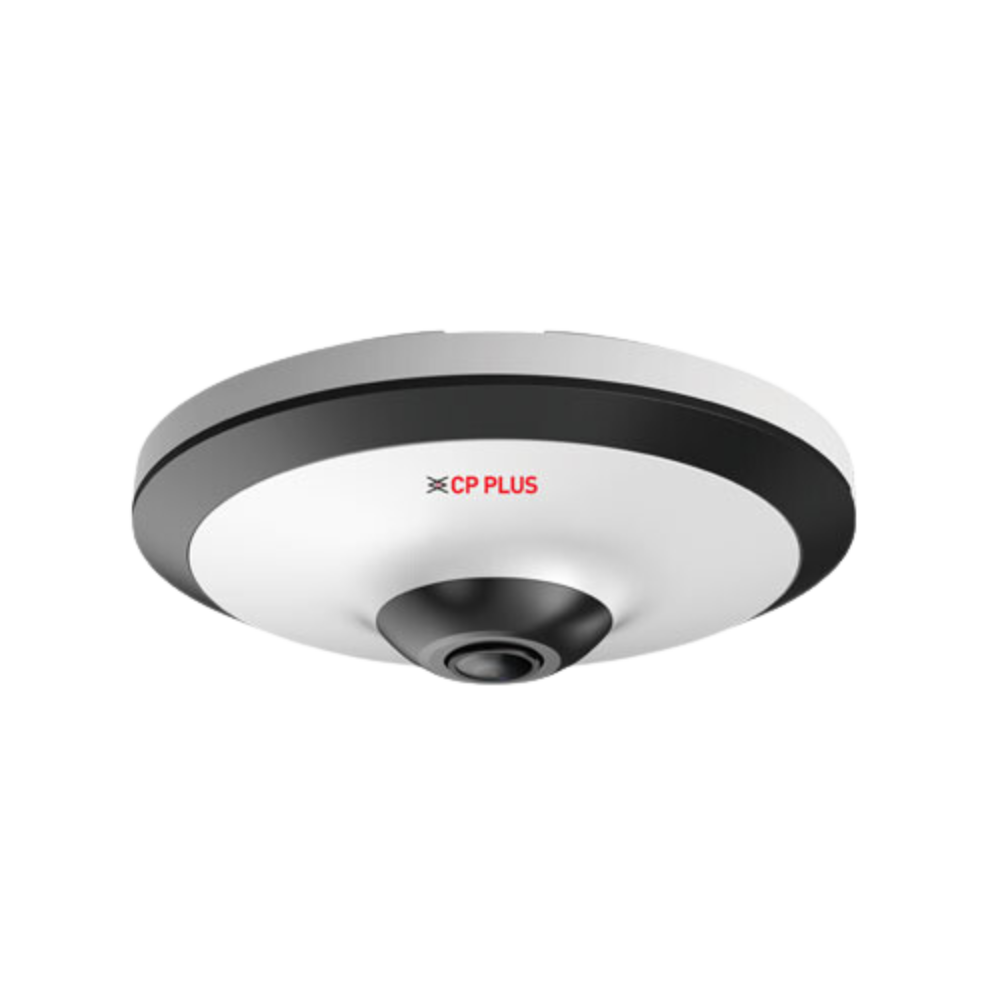

CP Plus 5MP Full HD Panoramic Network IR Fisheye Camera [ CP-UNC-EE51L1C-VMD ]

1/2.7” 5MP progressive scan CMOS Image Sensor (0.9407cm)
Instastream and H.264+ triple-stream encoding
Max. 25fps@5MP(2592×1944)
WDR(120dB), Day/Night (ICR), 3D-DNR, ROI, AWB, AGC, BLC, HLC
1.4mm fixed lens
Built-in Mic, Micro SD Card, PoE
IR Range of 10 Mtr.
Mobile Software: iCMOB, gCMOB

CMS Software: KVMS Pro

Image Sensor	1/2.7” 5MP progressive scan CMOS Image Sensor (0.9407cm)
Minimum Illumination	0.006 Lux@F2.0 (Color, 30IRE) 0.0006 Lux@F2.0 (B/W, 30IRE) 0 Lux (IR on)
Effective Pixels	2592(H) x 1944(V)
BodyType	Fisheye
Shutter Speed	Auto/Manual, 1/3~1/100000s
S/N Ratio	>56dB
White Balance	Auto/natural/street lamp/outdoor/manual/regional custom
Lens	1.4mm
Max Aperture	F2.0
Gain Control (AGC)	Auto/Manual
Lens Type	Fixed-focal
Video Compression	Instastream/H.265/H.264+/H.264/H.264H/MJPEG (Sub Stream)
Angle of View	H: 180°, V: 180°, D: 180°
Back Light Comp.	BLC / HLC / WDR(120dB)
Video Streaming	Main stream (2592 × 1944 @1–25/30 fps) sub stream (704 × 576 @1–25 fps/704 × 480@1–30 fps) third stream (1280 × 720 @1–25/30 fps)
Digital Zoom	16x
Resolution	5MP (2592 × 1944); 3MP (2048 × 1536); UXGA (1600 × 1200); 1.3M (1280 × 960); 720P (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Motion Detection	Off / On (4 Zone, Rectangle)
DORI Distance	28m (Detect) 11.2m (Observe) 5.6m (Recognize) 2.8m (Identify)
Privacy Mask	Off / On (4 Area, Rectangle)
ICR	Auto (ICR) / Color / B/W
ROI	Off / On (4 Zone)
Audio	Built-in Mic
Audio Compression	PCM; G.711a; G.711Mu; G726
Bit Rate	H.264: 3 kbps–8192 kbps H.265: 3 kbps–8192 kbps
Protocol	IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; InstaOn
Audio Input	1 Ch.
Smart Detection	Tripwire , Intrusion, Heat map
Audio Output	1 Ch.
Ethernet	RJ-45 (10/100Base-T)
Alarm IN	1 channel in: 5mA 3V–5V DC
User Account	20 (Total bandwidth: 64 M)
Alarm Out	1 channel Out: 300mA 12VDC
Smart Phone	iPhone, iPad, Android Phone
Micro SD	FTP; SFTP; Micro SD card (support max. 256 G); NAS
IR	IR Range of 10 Mtr., Smart IR
People Counting	Support people counting in area, and displaying and outputting yearly/monthly/daily reports (matching devices are needed); support people counting in 4 areas
Intelligent Search	Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Cyber Security	Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
SDK and API	Yes
Alarm Event	No SD card; SD card full; SD card error; service life warning (supported by CP Plus card); network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; people counting in area; stay alarm; people counting; people No. exception detection; safety exception
Casing	Metal +Plastic
Storage Temperature	-40°C to +60°C (–40°F to +140°F)
Operating Temperature	-10° C ~ +50° C (14° F ~ +122° F) / Less than 95% RH
Power Source	DC12V, PoE(802.3af)
Power Consumption	Basic power consumption: 3.6W (12V DC); 4.4W (PoE) Max. power consumption (H.265 + IR on+ intelligent function + WDR): 7.3W (12V DC); 8.8
Dimension	44.6 mm × Φ126.2 mm
Weight	299g
