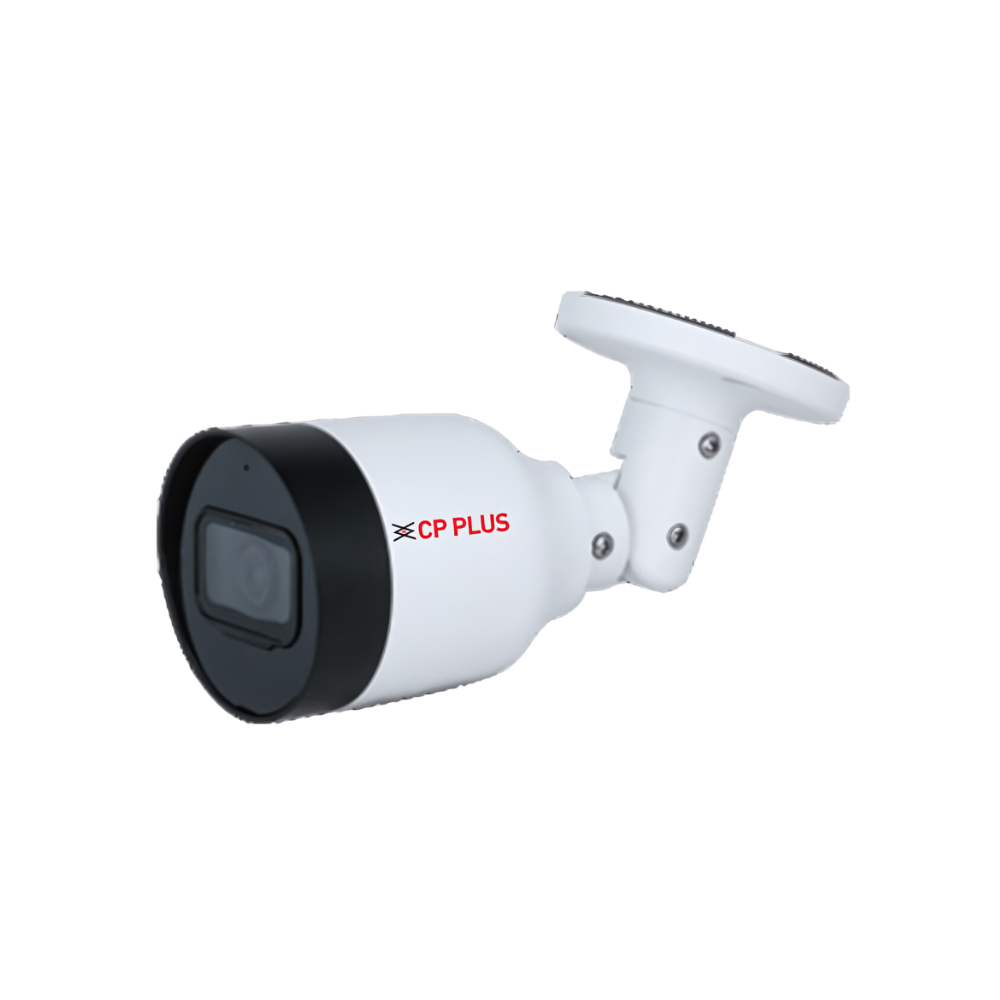

CP Plus 5MP IR Network Bullet Camera – 30Mtr [ CP-UNC-TA51L3C ]

1/2.7” 5MP PS CMOS Image Sensor (0.9407centimetres)
Max. 5MP (2880 × 1620)@20fps and supports 2688 × 1520(2688 × 1520)@25/30fps.
Instastream and Smart H.264+ dual-stream encoding
DWDR, Day/Night (ICR), 3D-DNR, ROI, AWB, AGC, BLC, HLC
3.6mm lens (2.8mm optional)
IR Range of 30 Mtrs, IP67, PoE
Support Built-in Mic
Mobile Software: iCMOB, gCMOB
CMS Software: KVMS Pro

*Only for Middle East/ Africa/ EU Region

Image Sensor	1/2.7” 5MP Progressive scan CMOS (0.9407centimetres)
Minimum Illumination	0.03 Lux@F2.0 (Color, 30 IRE) 0.003 Lux@F2.0 (B/W, 30 IRE) 0 Lux (IR on)
Effective Pixels	2880 (H) x 1620 (V)
BodyType	Bullet
White Balance	Auto/natural/street lamp/outdoor/manual/regional custom
Lens	3.6mm (2.8mm Optional)
Iris	Fixed
Close Focus Distance	2.8mm: 0.8m ; 3.6mm: 1.3m
S/N Ratio	>56dB
Gain Control (AGC)	Auto/Manual
Shutter Speed	Auto/Manual, 1/3~1/100000s
Video Compression	Instastream/H.265/Smart H.264+/H.264/H.264B/MJPEG (only supported by the sub stream)
Max Aperture	F2.0
Angle of View	3.6mm: Horizontal: 92°; Vertical: 48°; Diagonal: 109° 2.8mm: Horizontal: 106°; Vertical: 56°; Diagonal: 125°
Lens Type	Fixed-focal
Back Light Comp.	BLC/ HLC/ DWDR
Frame Rate	Main stream: 2880 × 1620 (1 fps–20 fps) 2688 × 1520 (1 fps–25/30 fps) Sub stream: 704 × 576 (1 fps–25 fps) 704 × 480 (1 fps–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
DORI Distance	3.6mm– 76m (Detect) 30.4m (Observe) 15.2m (Recognize) 7.6m (Identify) 2.8mm– 56m (Detect) 22.4m (Observe) 11.2m (Recognize) 5.6m (Identify)
Resolution	2880 × 1620 (2880 × 1620); 2688 × 1520 (2688 × 1520); 2560 × 1440(2560 × 1440); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Motion Detection	OFF/ON (4 areas, rectangular)
Privacy Mask	4 areas
ICR	Auto(ICR)/Color/B/W
ROI	Yes (4 areas)
Bit Rate	H.264: 32 Kbps–6144 Kbps ; H.265: 12 Kbps–6144 Kbps
Audio	Built-in Mic
Audio Compression	G.711A; G.711Mu; G.726; PCM
Cyber Security	Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade
Protocol	IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; NTP; Multicast, ONVIF (Profile S/Profile T); CGI; InstaOn; Genetec; Milestone
SDK and API	Yes
Alarm Event	Network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; security exception
Ethernet	RJ-45 (10/100Base-T)
User Account	6 (Total bandwidth: 48 M)
Smart Phone	iPhone, iPad, Android Phone
IR Range	IR Range of 30 Mtr., Smart IR
Operating Temperature	-40° C ~ +60° C (-40° F ~ +140° F) / Less than <95% RH
Power Source	DC12V, PoE (802.3af)
Power Consumption	1.9W (12V DC); 2.3W (PoE)
Weatherproof Standard	IP67
Dimension	162.1 mm × Φ70.1 mm
Casing	Metal
Weight	0.32 kg
