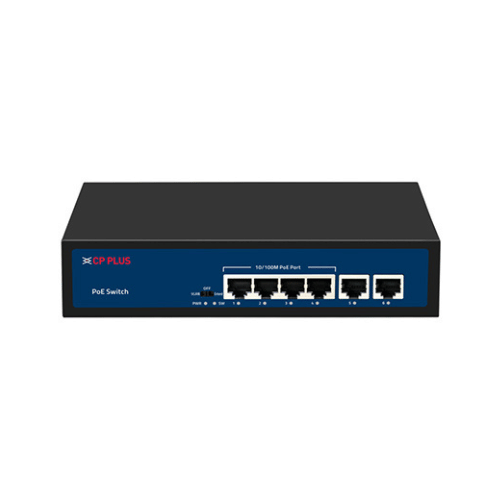

CP Plus 6 Ports Switch with 4 PoE Ports & 2 Uplink Ports [CP-DNW-HPU4H2-48-V2]

Network Port	4, 10/100Mbps; RJ45 port; Max. 30W Output of Single PoE Port
Uplink Ports	2, 10/100Mbps; Transmission Distance: Default: 0-100m
Switch Capacity	1.2Gbps (non-blocking)
Forwarding Rates	0.1488 Mbps/port
PoE Standard	IEEE802.3/802.3u/802.3x
PoE Power Supply	1/2(+),3/6(-)
Transmission Distance	0-100m/100Mbps or Max. 250m/10Mbps via Cat.5e or more under Extend mode
MAC Address List	2k
Lightning Protection	Support
PoE Power Budget	48W
ESD Protection	Air discharge: 8KV Contact discharge: 6KV
Power Consumption	<5W
LED light	Green light off: Link is disconnected Green light on: Link is connected Green light flash: Data Transmitting
Power Source	Built-in Power Supply, Input: 100-240V AC, 50/60Hz
Power Light	Light on: Powering Light off: No Power
Working Temp	-10°C ~50°C
Humidity	5%-95% , non-condensing
Storage Temperature	-40°C ~70°C
Dimension	200mm x 118mm x 44mm (LxWxH)
