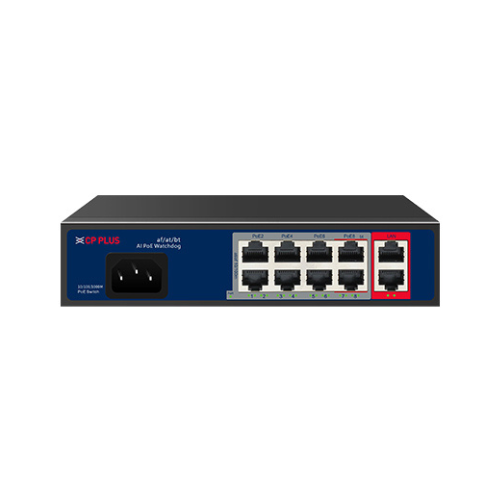

![CP PLUS 8 Ethernet Port + 2 Gigabit Port AI PoE Switch [CP-ANW-HPU8G2-N12]](https://cctv.differentaa.com/wp-content/uploads/2024/08/CP-VTA-M1143-Face-Fingerprint-Based-Time-Attendance-Terminal-18-1.png)
- Using CAT.5 network patch cords support power for the wireless AP and IP camera.
- Networking standard: IEEE802.3af/at/bt.
- PoE Watchdog AI Function: Detection front-end PoE cameras and PD, Automatic detection, Automatic restart
- Upload port automatic flip (Auto MDI / MDIX)
- 6KV lightning protection, 8KV surge protection, anti-reverse connection, over-current protection, over-voltage protection, over-temperature protection, Short circuit protectiond
- The port power is 60 watts, it is convenient for high-power device.
- Zero configuration feature power supply is automatically supplied to the adaptive equipment.
| Network Port | PoE (1~6): 10/100Mbps PoE ports (RJ45) PoE (7~8): 10/100Mbps PoE ports, BT port, Compatible uplink ports (RJ45) LAN: 10/100/1000Mbps uplink ports (RJ45) |
| Switch Capacity | 5.6 Gbps |
| PoE Standard | IEEE 802.3i 10 BASE-T IEEE 802.3u 100 BASE-TX/ IEEE 802.3ab 1000 BASE-TX IEEE 802.3x Flow Control IEEE 802.3af/at/bt Power over Ethernet |
| Transmission Distance | 1~130m |
| MAC Address List | 8K |
| Lightning Protection | 6KV |
| PoE Power Budget | 120W |
| ESD Protection | 8KV, Per: IEC61000-4-2 |
| Power Source | AC 180~240V, Total: ≤120W |
| Working Temp | -30°C ~60°C |
| Humidity | 10%~90% (Non-condensing) |
| Storage Temperature | -40°C ~70°C |
| Storage Humidity | 5%~90% (Non-condensing) |
| Dimension | 187mm(L) x 139mm(W) x 43mm(H) |
| Weight | 1Kg |
