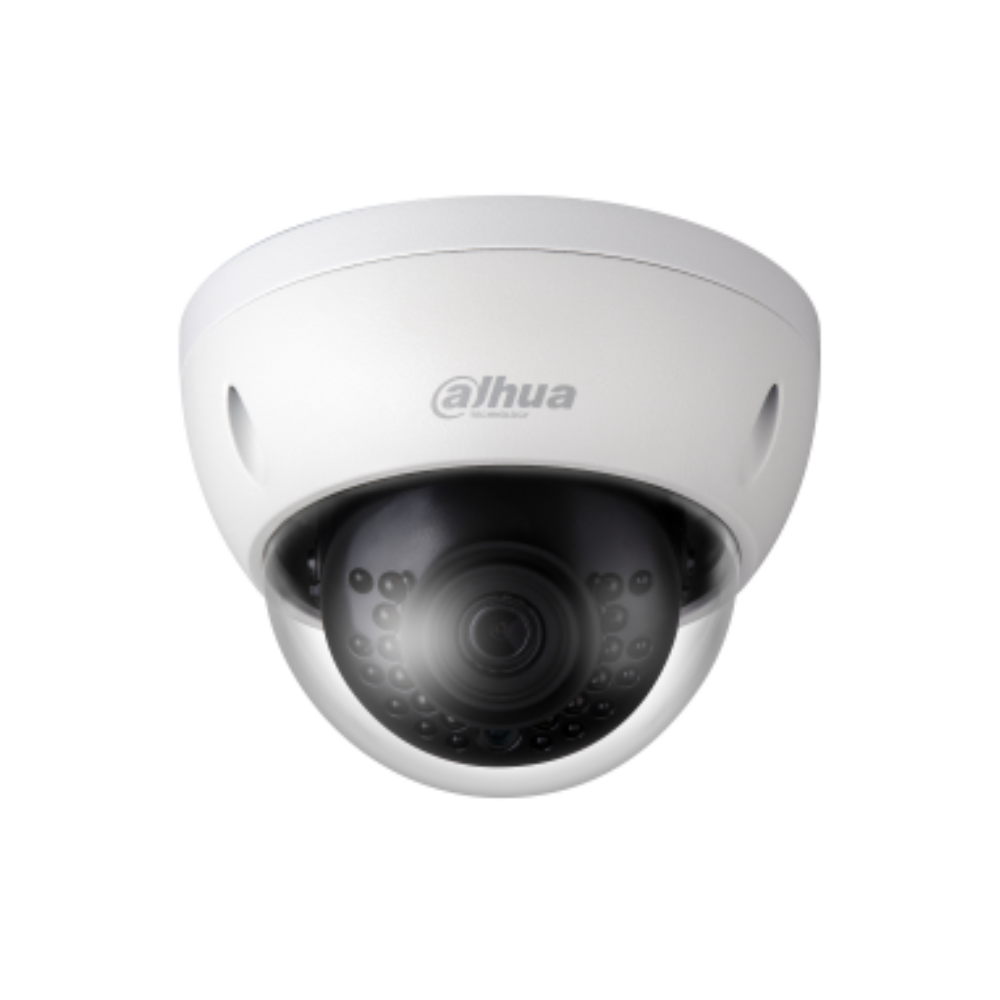

Dahua 2MP IR Mini-Dome Network Camera [ DH-IPC-HDBW1230EP-S4 ]

1/2.7” 2Megapixel progressive CMOS
H.265 codec, high compression rate, ultra-low bit rate
25/30fps@1080P(1920×1080)
Abnormality detection: Motion detection, video tampering, network disconnection, IP conflict, illegal access
ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, DWDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Max IR LEDs length 30m
12V DC/PoE power support
IP67, IK10

Camera

Image Sensor

1/2.7” 2Megapixel progresive CMOS

Effective Pixels

1920(H)x1080(V)

RAM/ROM

64MB/16MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3~1/100000s

Minimum Illumination

0.01 Lux @F2.0

S/N Ratio

More than 50dB

IR Distance

Distance up to 30m(98ft)

IR On/Off Control

Auto/ Manual

IR LEDs

Lens

Lens Type

Fixed

Mount Type

M12

Focal Length

2.8 mm

3.6 mm

Max. Aperture

F2.0/F2.0

Angle of View

2.8 mm: Horizontal: 105° Vertical: 57° Diagonal: 125°

3.6 mm: Horizontal: 87° Vertical: 47° Diagonal: 104°

Focus Control

Fixed aperture

Close Focus Distance

2.8 mm: 0.5 m (1.6 ft) 3.6 mm: 0.9 m (3.0 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

37.3(122.4ft)

14.9(48.9ft)

7.5(24.6ft)

3.7(12.1ft)

3.6 mm

53.3(174.9ft)

21.3(69.9ft)

10.7(35.1ft)

5.3(17.4ft)

PTZ

Pan/Tilt Range

Pan: 0° ~355°; Tilt: 0° ~65°; Rotation: 0° ~355°

Video

Compression

H.265; H.264; H.264H; H.264B; MJPEG

Smart Codec

Yes

Streaming Capability

2 Streams

Resolution

1080p (1920 × 1080); 1.3m (1280 × 960);720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640× 480); CIF (352 × 288/352 × 240)

Frame Rate

Main Stream: 1920 × 1080 (1 fps–25/30 fps)

Sub stream: 704 × 576 (1 fps–25 fps) 704 × 480 (1 fps–30 fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.264: 32 Kbps–6144 Kbps

H.265: 12 Kbps–6400 Kbps

Day/Night

Auto(ICR) / Color / B/W

BLC Mode

BLC / HLC / DWDR

White Balance

Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detection

Off / On (4 Zone, Rectangle)

Region of Interest

Off / On (4 Zone)

Electronic Image

Support

Smart IR

Support

Digital Zoom

16x

Flip

0°/90°/180°/270°

Mirror

Off / On

Privacy Masking

Off / On (4 Area, Rectangle)

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

IPv4; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; NTP; Multicast

Interoperability

ONVIF (Profile G); CGI; P2P; Genetec

Streaming Method

Unicast / Multicast

Max. User Access

Edge Storage

FTP; Dahua Cloud

Web Viewer

IE, Chrome, Firefox

Management Software

Smart PSS, DSS, DMSS

Smart Phone

IOS, Android

Certifications

CE-LVD: EN60950-1

CE-EMC: Electromagnetic Compatibility Directive

2014/30/EU

FCC: 47 CFR FCC Part 15, Subpart B

Interface

Video Interface

N/A

Audio Interface

N/A

RS485

N/A

Alarm

N/A

Electrical

Power Supply

DC12V, PoE (802.3af)

Power Consumption

<5W

Environmental

Operating Conditions

-40° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Storage Conditions

-40° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Ingress Protection

IP67

Vandal Resistance

IK10

Construction

Casing

Metal

Dimensions

81 mm × Φ109.9 mm (3.2″ × Φ4.3″)

Net Weight

0.35Kg (0.75lb)

Gross Weight

0.50Kg (1.04lb)
