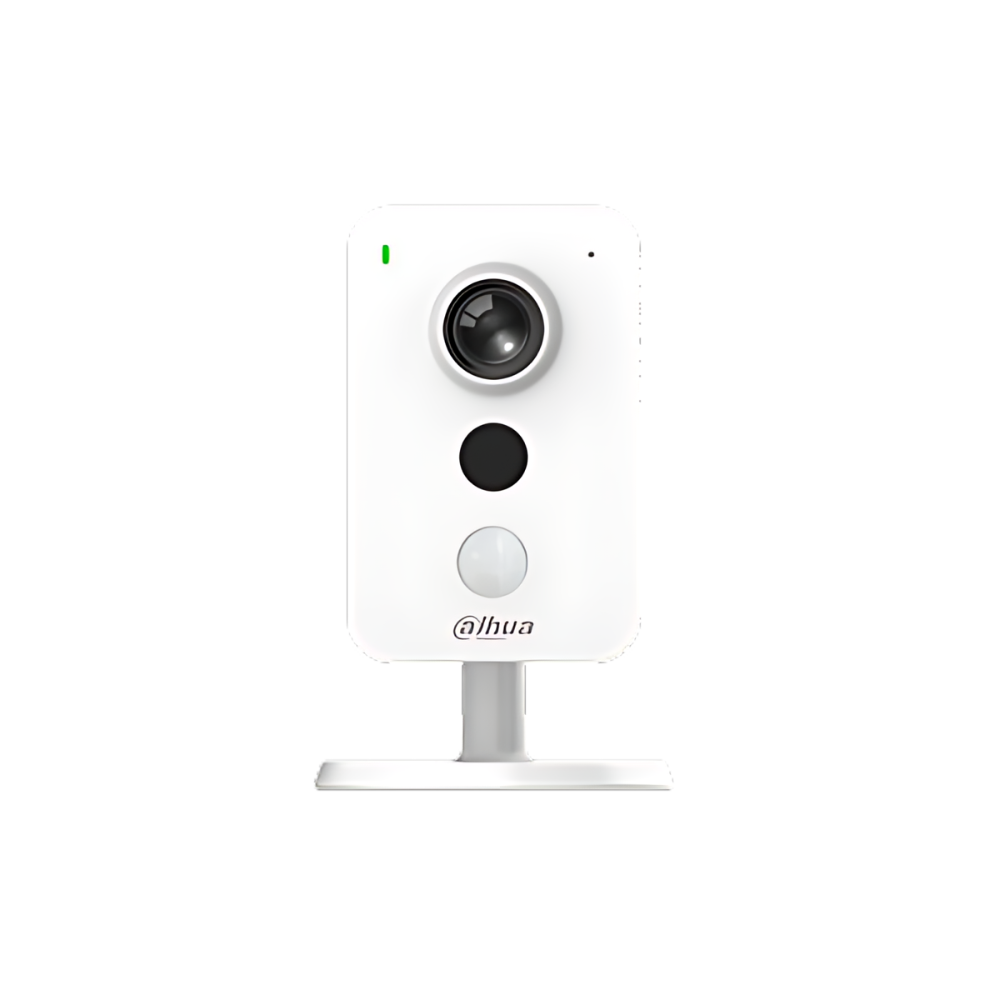

Dahua 4MP IR Network Camera [ DH-IPC-K42P ]

• 4MP, 1/3” CMOS image sensor, low illuminance, high image definition
• Outputs max. 4MP (2560 × 1440) @25/30 fps
• H.265 codec, high compression rate, ultra-low bit rate
• Max. IR distance: 10 m
• Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
• H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
• Alarm: 1 in, 1 out; 256 G SD card, built-in Mic and speaker
• Supports 256 G Micro SD card
• 12V DC power supply, easy for installation
• Supports PIR
• Supports Wi-Fi

Camera
Image Sensor 1/3”4Megapixel progressive CMOS
Max. Resolution 2560 (H) × 1440 (V)
ROM 128 MB
RAM 128 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination
Manual 1/30 s
0. 170 Lux @F2.0 (Color, 80 IRE); 0.165 Lux @F2.0 (W/B,
80 IRE); 0 Lux (IR on)
Manual 1/3 s
0.0141 Lux @F2.0 (Color, 80 IRE); 0.0116 Lux @F2.0
(W/B, 80 IRE); 0 Lux (IR on)
S/N Ratio > 46.6 dB
Illumination Distance 10 m (32.8 ft) (IR LED)
Illuminator On/Off Control Auto
Illuminator Number 1 (IR LED)
Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 0°–90°

Lens
Lens Type Fixed-focal
Mount Type M12
Focal Length 2.8 mm
Max. Aperture F2.0
Field of View
Horizontal: 97°
Vertical: 52°
Diagonal: 116°
Iris Type Fixed
Close Focus Distance 0.8 m (2.6 ft)
DORI Distance
Detect Observe Recognize Identify
56.0 m
(183.7 ft)
22.4 m
(73.5 ft)
11.2 m
(36.7 ft)
5.6 m
(18.4 ft)
