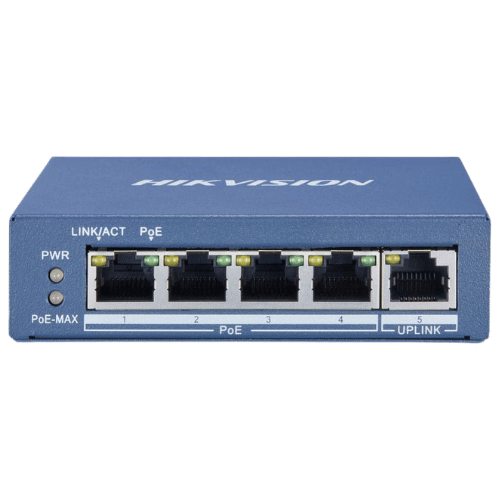

![Hikvision 4 Port Gigabit Unmanaged POE Switch [DS-3E0505P-E/M]](https://cctv.differentaa.com/wp-content/uploads/2024/08/VIGI-4MP-Full-Color-Turret-Network-Camera-7-1.png)
- 4 × Gigabit PoE port, 1 × Gigabit RJ45 port
- IEEE 802.3at/af standard
- IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z standard
- 6 KV surge protection for PoE ports
- PoE power management
- Gigabit network access
- Wire-speed forwarding and non-blocking design
- Store-and-forward switching
- Solid high-strength metal shell
- Reliable fan-free design
- General
- ShellMetal material
- Net Weight0.265 kg (0.58 lb)
- Gross Weight0.759 kg (1.67 lb)
- Dimensions (W × H × D)105 mm × 27.6 mm × 83.1 mm (4.1” × 1.1” × 3.3”)
- Operating Temperature0 °C to 40 °C (32 °F to 104 °F)
- Storage Temperature–40 °C to 85 °C (–40 °F to 185 °F)
- Operating Humidity5% to 95% (no condensation)
- Relative Humidity5% to 95% (no condensation)
- Power Supply48 VDC, 0.8 A
- Max. Power Consumption38 W
- Power Consumption in Idle3 W
- Installation ModeDesk-Mounted,Wall-Mounted
- Surge Protection6 KV
- Network Parameters
- Ports4 × Gigabit PoE port,1 × Gigabit RJ45 port
- MAC Address Table2 K
- Switching Capacity10 Gbps
- Packet Forwarding Rate7.44 Mpps
- Internal Cache1 Mbits
- PoE Power Supply
- PoE StandardIEEE 802.3af;IEEE 802.3at
- PoE Power PinEnd-span: 1/2(+), 3/6(-)
- PoE PortPoE: Ports 1 to 4
- Max. Port Power30 W
- PoE Power Budget35 W
- Approval
- EMCFCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
- SafetyUL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
- Chemistry
CE-RoHS (201165EU);
WEEE (201219EU);
Reach (Regulation (EC) No.19072006)
