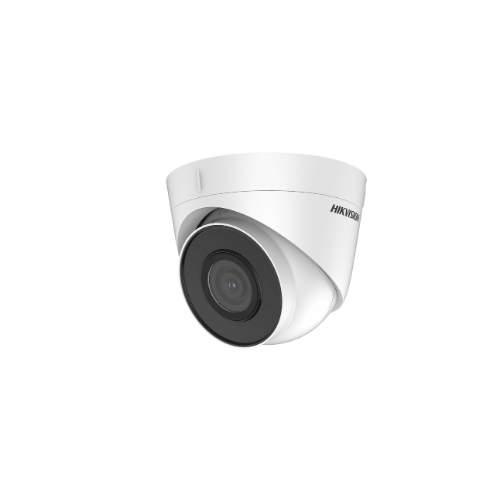

Hikvision1.3 MP DOME 15 MTRS IR RANGE [DS-2CD1313G0E-I]

Key Features

• 2.54 cm (1/2.8 inch) progressive scan CMOS
• 1280 × 960@30fps
• 2.8 mm/4 mm fixed lens
• H.265+/H.265/H.264+/H.264
• 3D DNR
• Up to 10 m IR range

Camera

• Image Sensor2.54 cm (1/2.8 inch) progressive scan CMOS
• Min. IlluminationColor: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON)
• Shutter Speed1/3 s to 1/100, 000 s
• Slow ShutterYes
• Auto-IrisNo
• Day &NightIR cut filter
• Digital Noise Reduction3D DNR
• WDRDWDR
• Angle AdjustmentPan: 0° to 360°, tilt: 0° to 75°, rotation: 0° to 360°

Lens

• Focal Length2.8 mm, 4 mm
• ApertureF2.0
• FocusFixed
• FOV2.8 mm, horizontal FOV 114.8°, vertical FOV 62°, diagonal FOV 135.5° 4 mm, horizontal FOV 86°, vertical FOV 46.5°, diagonal FOV 102.5°
• Lens MountM12

IR

• IR RangeUp to 10 m
• Wavelength850 nm

Compression Standard

• Video CompressionMain stream: H.265+/H.265/H.264+/H.264 Sub stream: H.265/H.264/MJPEG
• H.264 TypeMain Profile/High Profile/Baseline Profile
• H.265 TypeMain Profile
• Video Bit Rate32 Kbps to 8 Mbps

Smart Feature-set

• Region of Interest1 fixed region for main stream


• Max. Resolution1280 × 960
• Main Stream Max. Frame Rate50Hz: 25fps (1280 × 960, 1280 × 720) 60Hz: 30fps (1280 × 960, 1280 × 720)
• Sub-stream Max. Frame Rate50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
• Image EnhancementBLC, 3D DNR
• Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
• Day/Night SwitchAuto, scheduled, day, night

Network

• Alarm TriggerMotion detection, video tampering alarm, illegal login
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP
• General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
• Firmware VersionV5.5.83
• APIONVIF (PROFILE S), ISAPI
• Simultaneous Live ViewUp to 6 channels
• User/HostUp to 32 users 3 levels: Administrator, Operator and User
• ClientiVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
• Web BrowserIE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+

Interface

• Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port

General

• Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing)
• Power Supply 12 VDC ± 25%, 5.5 mm coaxial power plug PoE (802.3af, class 3) Power Consumption and Current 12 VDC, 0.3 A, max: 3.5Power Supply 12 VDC ± 25%, 5.5 mm coaxial power plug PoE (802.3af, class 3)
• Power Consumption and Current12 VDC, 0.3 A, max: 3.5 W PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, Max: 4.5 W
• Weight190 g (0.4 lb.)
