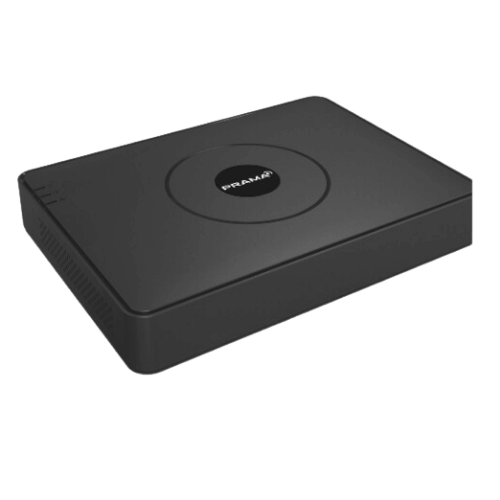

![Prama 16CH DVR 1080P\4MP Lite 1HDD AI H.265Pro+ DVR [PT-DRAS1A16Q-K1]](https://cctv.differentaa.com/wp-content/uploads/2024/08/VIGI-4MP-Full-Color-Turret-Network-Camera-4-1.png)
Intelligent algorithm-based motion detection for all analog channels
KEY FEATURES
- Intelligent algorithm-based motion detection for all analog channels
- Intelligent algorithm-based perimeter protection
- 265 Pro+/H.265 Pro/H.265 video compression
- HDTVI/AHD/CVI/CVBS/IP video inputs
- Audio via coaxial cable
- Up to 24-ch IP camera inputs
- Up to 10 TB capacity per HDD
Compression and Recording
H.265 Pro+ can be enabled to improve encoding efficiency and reduce data storage costs·
Full channel recording at up to 4 MP lite resolution
Storage and Playback
Smart search for efficient playback
Smart Function
Support multiple VCA (Video Content Analytics) events for both analog and smart IP cameras·
Support 4-ch line crossing detection and intrusion detection
Network & Ethernet Access
PRAMA-ONLINE & DDNS (Dynamic Domain Name System) for easy network management·
Max. 96 Mbps incoming bandwidth and output bandwidth limit configurable
Specification
| Model | PT-DRAS1A16Q-K1 |
| Motion Detection | |
|
Human/Vehicle Analysis |
Intelligent algorithm-based motion detection is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by object or event type is supported; |
| Perimeter Protection | |
| Line Crossing Detection/
Intrusion Detection |
4-ch |
| Recording | |
| Video compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
|
Encoding resolution |
When 1080p lite mode is not enabled:
4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF When 1080p lite mode is enabled: 4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF |
|
Frame rate |
Main stream:
When 1080p Lite mode is not enabled: 4 MP lite/1080p@15 fps; 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) When 1080p Lite mode is enabled: 4 MP lite@15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) |
| Sub-stream:
WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N) |
|
| Video bit rate | 32 Kbps to 10 Mbps |
| Dual stream | Support |
| Stream type | Video, Video & Audio |
| Audio compression | G.711u |
| Audio bit rate | 64 Kbps |
| Video and Audio | |
|
IP video input2 |
2-ch (up to 18-ch)
Enhanced IP mode on: 8-ch (up to 24-ch), each up to 4 Mbps |
| Up to 6 MP resolution | |
| Support H.265+/H.265/H.264+/H.264 IP cameras | |
| Analog video input | 16-ch |
| BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection | |
| HDTVI input | 3K@20 fps, 4 MP@30 fps, 4 MP@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps,
720p@30 fps, 720p@25 fps |
| AHD input | 4 MP@25 fps, 4 MP@30 fps, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps |
| HDCVI input | 4 MP@25 fps, 4 MP@30 fps, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps |
| CVBS input | PAL/NTSC |
| CVBS output | N/A |
| VGA output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
| HDMI output | 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz,
1280 × 720/60Hz, 1024 × 768/60Hz |
| Video output mode | HDMI and VGA simultaneous output |
| Audio input | 1-ch, RCA (2.0 Vp-p, 1 KΩ) |
| 16-ch via coaxial cable | |
| Audio output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-way audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) |
| Synchronous playback | 16-ch |
| Network | |
| Total bandwidth | 128 Mbps |
| Incoming bandwidth
(Enhanced IP mode) |
96 Mbps |
| Remote connection | 128 |
| Network protocol | TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS |
| Network interface | 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface |
| Auxiliary interface | |
| SATA | 1 SATA interface |
| Capacity | Up to 10 TB capacity for each disk |
| Serial interface | N/A |
| USB interface | Rear panel: 2 × USB 2.0 |
| Alarm in/out | N/A |
| General | |
| Power supply | 12 VDC, 1.9 A |
| Consumption (without
HDD) |
≤ 15 W |
| Working temperature | -10 °C to +55 °C (+14 °F to +131 °F) |
| Working humidity | 10% to 90% |
Available Model
PT-DRAS1A16Q-K1
Physical Interface
| No. | Description | No. | Description |
| 1 | Video and Coaxial Audio In | 5 | AUDIO IN, RCA Connector |
| 2 | HDMI Interface | 6 | USB Interface and LAN Network Interface |
| 3 | VGA Interface | 7 | Power Input |
| 4 | AUDIO OUT, RCA Connector | 8 | GND |
